The Rancilio Classe 11 espresso machine redefines the human-machine interaction. Inspired by the language of smartphones, Classe 11 is distinguished by high standards of brewing technology, design and ergonomic solutions.
Xcelsius Temperature Profiling technology allows baristas to bring out the best in the organoleptic characteristics of any coffee, thanks to the dynamic regulation of the water temperature during the extraction phase. By increasing or decreasing the temperature by up to 5°C (9°F), baristas can adjust the specific characteristics of the espresso in order to improve the quality of the final product in the cup. Each group head is equipped with a 150 ml micro-boiler with a 250W internal heating element which, in combination with a special hydraulic system, allows for the instantaneous extraction temperature to be adjusted. Rancilio Patented Technology – Only with USB Xcelsius version
Each independent group is equipped with a micro-boiler and two heating elements, to guarantee the thermal stability for both water temperature and group body, offering maximum accuracy at every cup. Only with USB Xcelsius version
Rancilio Steady Brew (SB) technology is the evolution of the traditional thermosiphon system and introduces a set of innovative features designed to improve the performance of all single-boiler espresso machines. By keeping the water temperature stable during extraction, Steady Brew guarantees excellent thermal stability, reliability and maximum repeatability, both during busy periods and in low usage conditions. Rancilio Patented Technology – (Only with USB version)
Innovative technology is your secret ingredient, with an on-board computer and thorough menu system allowing you to control quality in every cup.

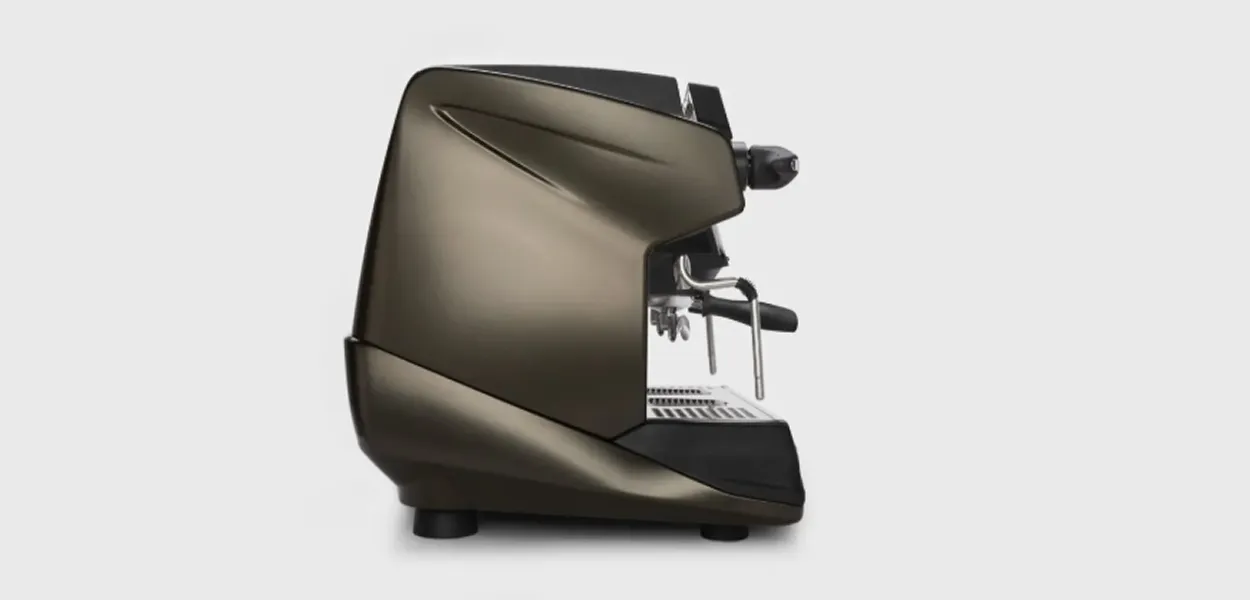

Attention to detail and automotive-inspired style make Classe 11 stand out with dynamic lines, robustness and great functionality. The Tall versione has a taller working area and can accommodate cups up to 14.5 cm in height.
Advanced features make the Classe 11 stand out for innovation, energy performance and heat management.
Width: 800 mm / 31.50 inch
Height: 540 mm / 21.26 inch
Depth: 600 mm / 23.62 inch
Weight: 85 kg / 187.4 lb
Adjustable feet: Yes
Max cup height: 80 mm / 3 inch
Grouphead display
Touchscreen: 5.7''
Digital display: Per group
Multi-boiler system
Each independent group is equipped with a micro-boiler and a heating element. As well as keeping the temperatures of both the water and the group stable, the multi-boiler system improves the thermal performance of the machine, even when simultaneously brewing espresso and steaming milk, and allows different temperatures to be set for each group head.

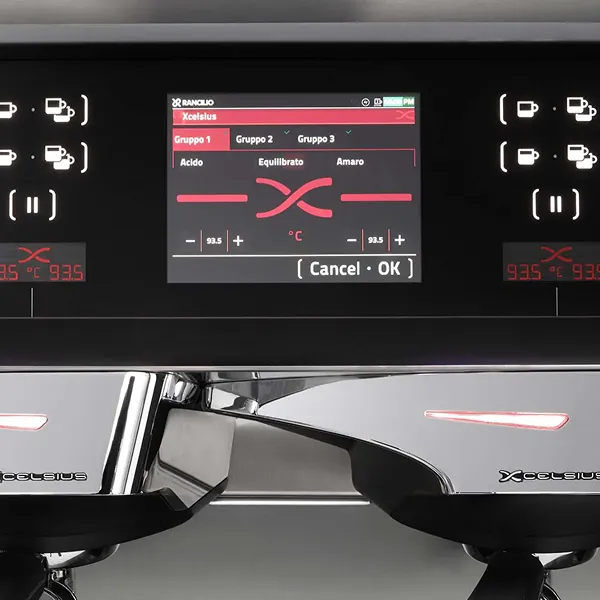

Xcelsius Temperature Profiling
Xcelsius Temperature Profiling technology allows baristas to bring out the best in the organoleptic characteristics of any coffee, thanks to the dynamic regulation of the water temperature during the extraction phase.
By increasing or decreasing the temperature by up to 5°C (9°F), baristas can adjust the specific characteristics of the espresso in order to improve the quality of the final product in the cup.
Each group head is equipped with a 150 ml micro-boiler with a 250W internal heating element which, in combination with a special hydraulic system, allows for the instantaneous extraction temperature to be adjusted.
Rancilio Patented Technology
Brewing group: Brass
Hot water wand
X-Tea
Baristas can programme water dosages and temperature levels via the interface.
Rancilio Patented Technology
C-lever
The C-lever steam valve is operated by rotating the knob just 25°. Turning it upwards, the valve stays open. Turning it downwards, the valve opens and automatically closes when released.
Cool touch steam wand
The cool touch steam wand is thermally insulated with a double-layered protective coating.
iSteam
The iSteam automatic steam wand features two buttons, both of which can be programmed with the following functions: “Cappuccino”, to heat and froth milk, or “Latte”, to heat only.
Rancilio Patented Technology.
Power supply: 220-240 V~/380-415 V3N~, 50-60 Hz 4950-6650 W
Water supply: Fixed water connection
Main boiler capacity (steam): 11 liter
Microboiler capacity (coffee): 2 x 150 ml
Ergonomic Portafilter
The chrome-plated brass portafilter, with an ergonomic handle designed to balance the weight, holds coffee filters up to a capacity of 21 g, ensures stability when pressing, and eases wrist movements for the barista. The portafilter handles may be personalized.
LED lights
White LED lights positioned under the group heads provide excellent illumination for the work area.
RGB lights
The aesthetic RGB lights can be customised with different intensities and colours (Classe 20 only). The functional RGB lights on the group covers (Classe 11, Classe 7 USB) and above the control panel (Classe 9) help the operator to monitor the various states of the machine at a glance.
ABM
ABM is a specific software developed to improve the performance of the machine in conditions of intensive use. When simultaneously brewing espresso, dispensing water and steaming milk, ABM switches on the heating element to pre-empt any drops in pressure under the preset value, thus preventing drops in temperature to ensure constant heating levels.
Control of the boiler pressure is optimised in the case of the intensive and simultaneous use of multiple group heads. In these cases, in order to prevent the pressure from dropping below a minimum value of 0.5 bar, ABM can stop water from being dispensed until the boiler pressure returns to a suitable level.
ABM also allows for control of the machine’s power consumption, reducing it to 2/3 of the normal value where power availability is low.
For espresso machines equipped with the iSteam wand, ABM also improves steam delivery performance by increasing the power of the heating element in the boiler, allowing it to produce more heat and reduce drops in pressure during milk frothing.
Rancilio Patented Technology
Auto ON-OFF
It is possible to set the automatic on and off times for the machine (Classe 11, Classe 20) or set the automatic on time and the power-on hours (Classe 9, Classe 7) for each day of the week.
Eco Mode
By managing the different water levels in the boiler, the water-to-steam ratio can be optimised to achieve maximum energy savings. In low usage conditions, the quantity of water in the boiler is reduced, thus increasing the proportion of steam. Working with less water in the boiler allows for lower energy consumption in order to bring it to the ideal temperature. And, at the same time, with more steam and less moisture in the boiler, the performance of the steam wands also improves.
Easy clean
Easy Clean manages the cleaning process of the group heads, so it can perform it all automatically. The barista need only start the cycle, and the machine will automatically carry out the washing and rinsing operations.
For all models (except the Classe 5 units), Easy Clean also allows you to schedule a daily alarm (3 alarms for the Classe 11) to warn the user of the need for a cleaning cycle, set an optional block on the machine in the event of a cleaning cycle, and view the history of all cleaning cycles performed.
Grid System
Hydro Hub
Snap&Share
Snap&Share is a QR code reader app that allows users to share the technical settings of their espresso machine, keep track of maintenance operations, monitor consumption, and register new products to activate the warranty.
USB
Connect
Connect is a powerful IoT solution developed by Rancilio Group, to gather and easy analyze all the value relevant data generated by a single coffee machine or an entire fleet. Via a customizable dashboard with widgets, tables and graphs, Connect gives you a ready to use digital toolkit, to monitor key performance parameters in real time and empower your whole coffee business.
Cup Warmer
The cup warmer keeps all espresso and cappuccino cups at the right temperature at all times.
Pods&Caps
Thanks to the Pods&Caps kit, all Rancilio espresso machines can be used with coffee pods and capsules (according to available systems).
