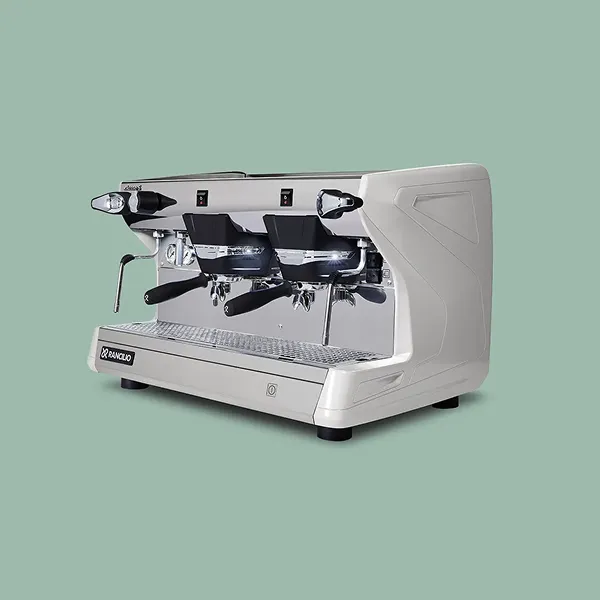

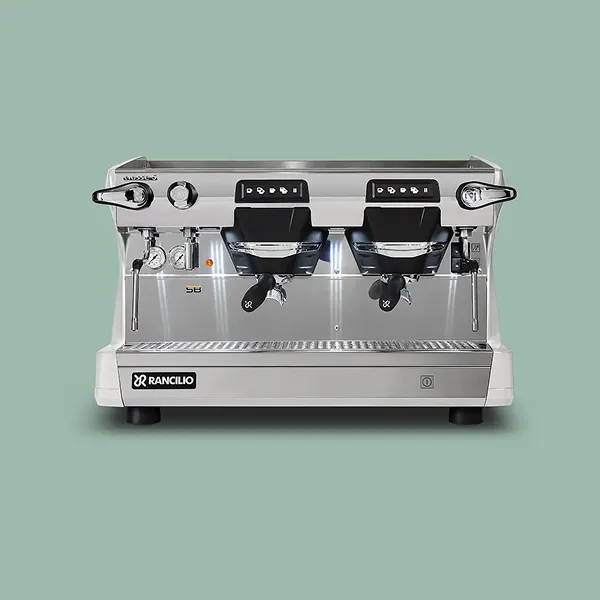

Single-boiler espresso machine available in 1, 2, 3 groups or 2 groups compact (2GRC). All versions feature automatic dosing (USB). Steady Brew (SB) technology is available for all versions, except 1GR and 1GR TALL.

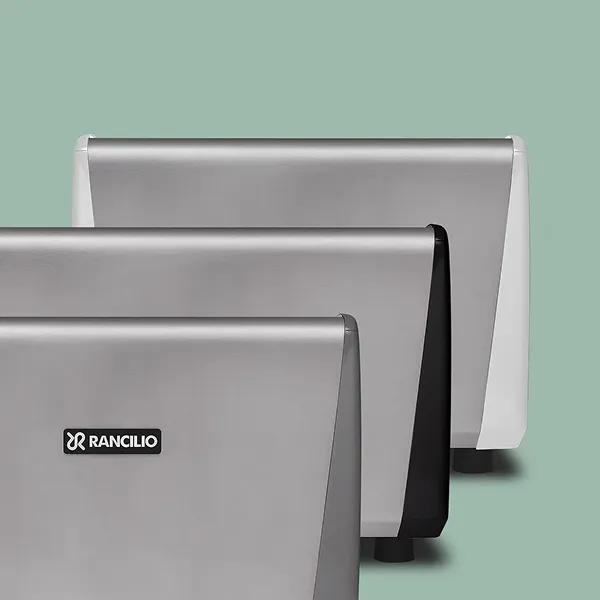

Classe 5 is the ideal companion for many different kinds of bars, coffee shops and restaurants. The three colours make it adaptable to any concept design style.
Classe 5 is available in Tall versions, with raised groups to hold cups up to 14.5 cm high, and also in compact versions for limited working areas. On request, Classe 5 S can be ordered with gas heating (2GR and 3GR only) and in the Tank version (1GR only), which does not require fixed water connection.
A few simple steps are all that is needed to care for your coffee machine. The daily cleaning cycle finishes in 5 minutes. Only in the Classe 5 Eco Crono version is information relating to the current cleaning cycle phase shown on the digital display integrated into the keypad.
Classe 5 transforms elegance, robustness and functional minimalism into a distinctive modern aesthetics.

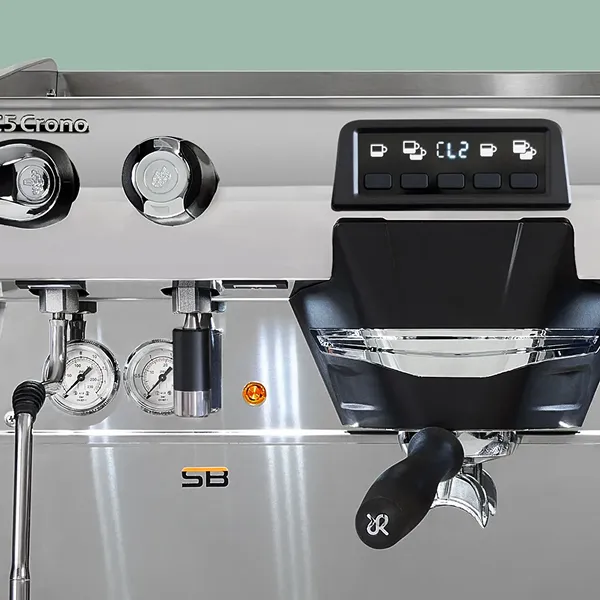

Each Classe 5 Crono group has a digital display integrated into the keypad. The display contains an active shot timer to show the duration of each extraction in real time. With the timer, the barista can constantly monitor the time of each extraction to ensure consistency and quality during service. In addition to the timer, the display also presents useful information when setting the coffee doses and starting the cleaning cycle.
Rancilio Steady Brew (SB) technology is the evolution of the traditional thermosiphon system and introduces a set of innovative features designed to improve the performance of the single-boiler Rancilio espresso machines. By keeping the water temperature stable during extraction, Steady Brew guarantees excellent thermal stability, reliability and maximum repeatability, both during busy periods and in low usage conditions. Rancilio Patented Technology *no 1GR, 1GR TALL, 1GR TANK
Width: 410 mm / 16.14 inch
Height: 520 mm / 20.47 inch
Depth: 539 mm / 21.22 inch
Weight: 37 Kg / 81,57 lb
Adjustable feet: Yes
Max cup height: 80 mm / 3 inch
Brewing group: Brass
Hot water wand
C-lever
The C-lever steam valve is operated by rotating the knob just 25°. Turning it upwards, the valve stays open. Turning it downwards, the valve opens and automatically closes when released.
iSteam DI
The iSteam automatic steam wand features two buttons, both of which can be programmed with the following functions: “Cappuccino”, to heat and froth milk, or “Latte”, to heat only.
Rancilio Patented Technology.
Steam wand
Power supply: 120V~,60Hz 1,8kW 220-240V~,50-60 Hz 2,05 kW
Water supply: Fixed water connection
Main boiler capacity (steam): 4 liter

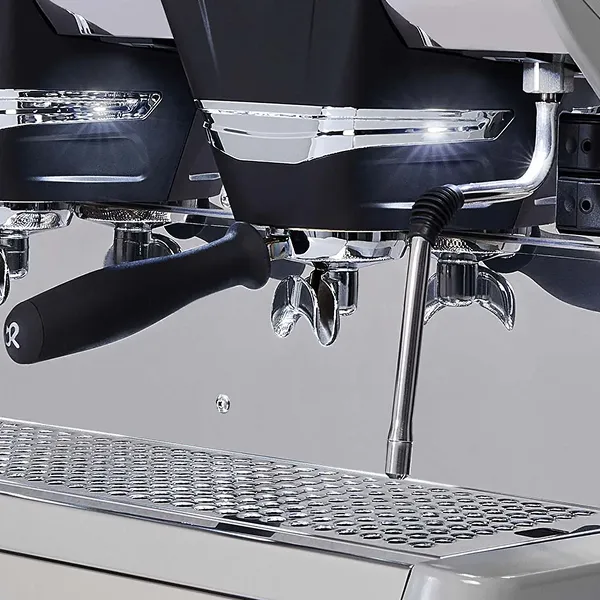

Ergonomic Portafilter
The chrome-plated brass portafilter, with an ergonomic handle designed to balance the weight, holds coffee filters up to a capacity of 21 g, ensures stability when pressing, and eases wrist movements for the barista. The portafilter handles may be personalized.
LED lights
Easy clean
Easy Clean manages the cleaning process of the group heads, so it can perform it all automatically. The barista need only start the cycle, and the machine will automatically carry out the washing and rinsing operations.
For all models (except the Classe 5 units), Easy Clean also allows you to schedule a daily alarm (3 alarms for the Classe 11) to warn the user of the need for a cleaning cycle, set an optional block on the machine in the event of a cleaning cycle, and view the history of all cleaning cycles performed.
Hydro Hub
USB
Connect
Connect is a powerful IoT solution developed by Rancilio Group, to gather and easy analyze all the value relevant data generated by a single coffee machine or an entire fleet. Via a customizable dashboard with widgets, tables and graphs, Connect gives you a ready to use digital toolkit, to monitor key performance parameters in real time and empower your whole coffee business.
Pods&Caps
Thanks to the Pods&Caps kit, all Rancilio espresso machines can be used with coffee pods and capsules (according to available systems).
Whether you’re opening your first café or upgrading your equipment, we’re here to help you make the right choice. Let’s build something amazing together.
