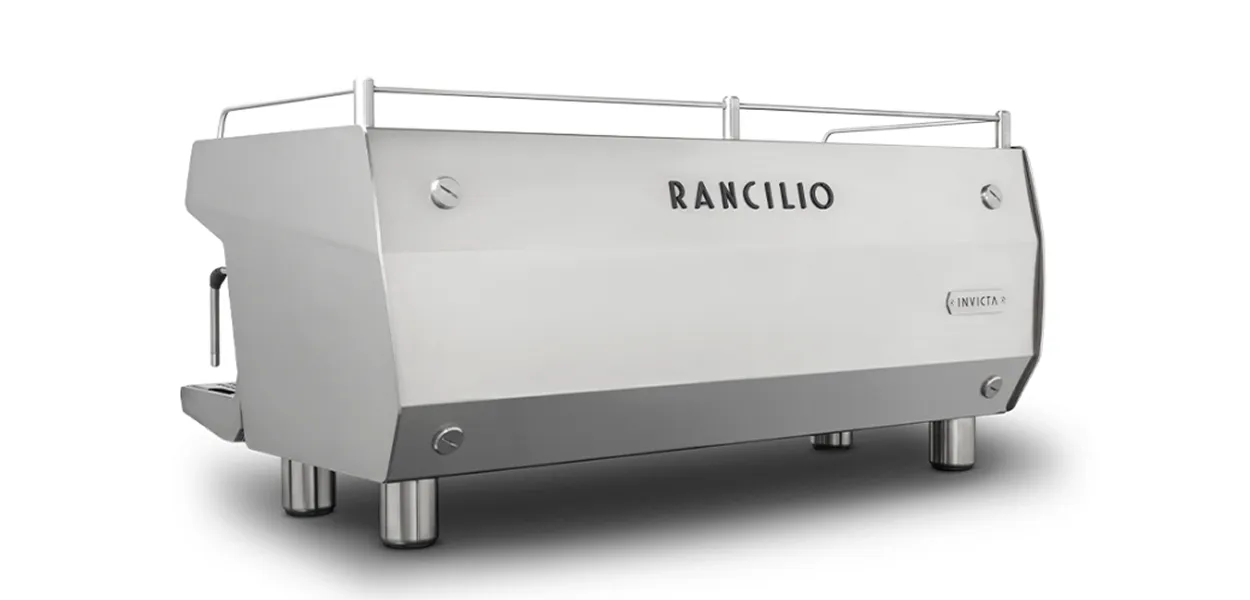

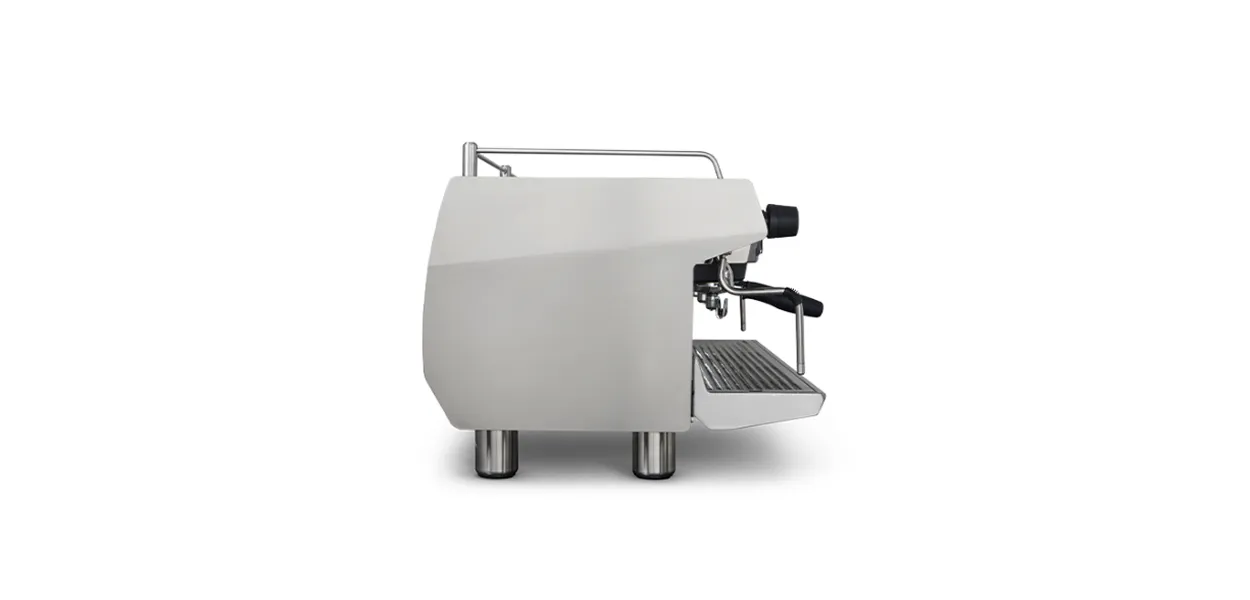

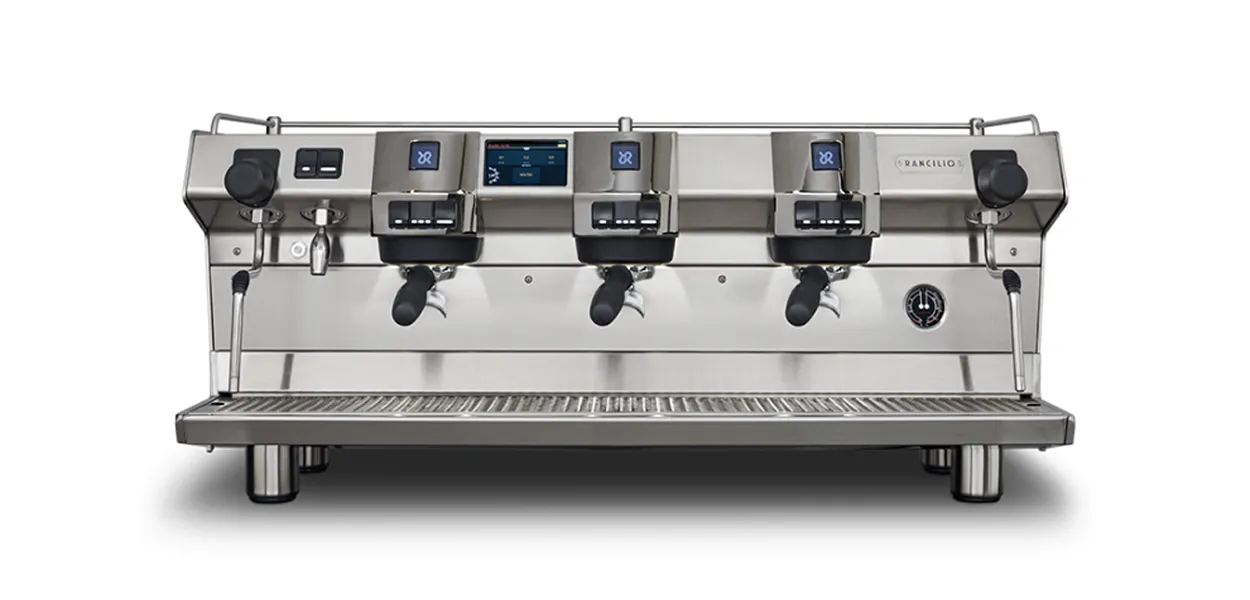

Invicta is the reliable, stable and easy-to-use single boiler coffee machine with a modern, no-frills design. Invicta is designed to speed up service and make the best extraction technologies accessible to all baristas thanks to electronic control of the coffee, water and steam functions.

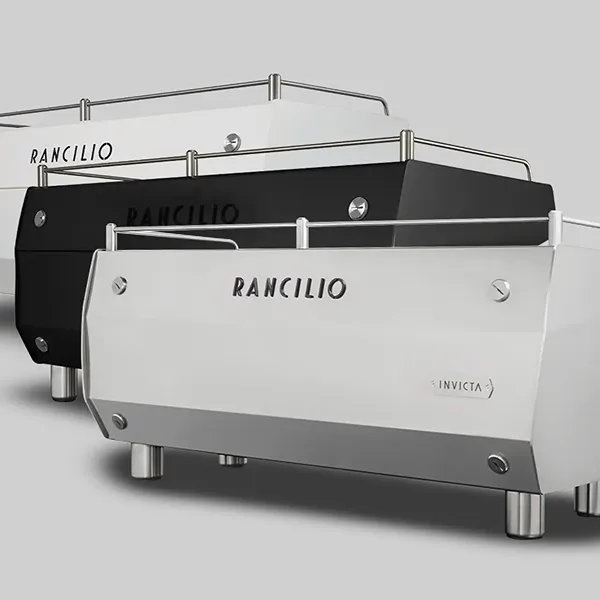

Invicta is available in 3 standard colours: stainless steel, black and white.

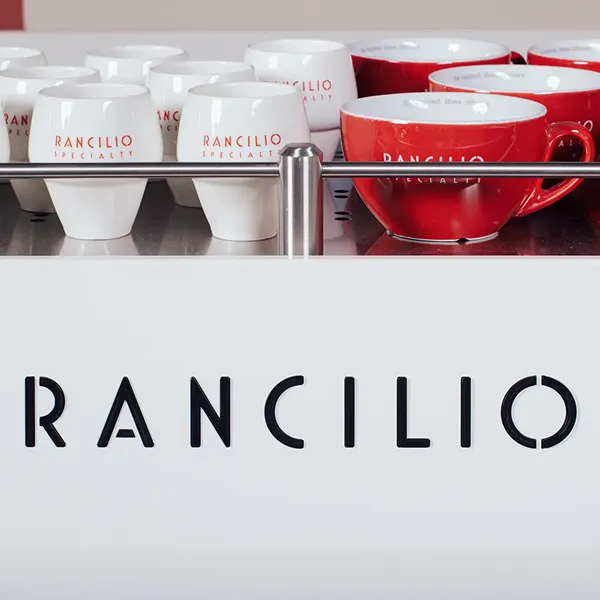

Cup warmer with 5 different temperature levels adjustable from the touchscreen available as an optional extra with the Invicta model.
An automatic “Flush” can be enabled after a set time interval from the last dispensing operation. This function keeps the group at the right temperature and improves thermal stability.

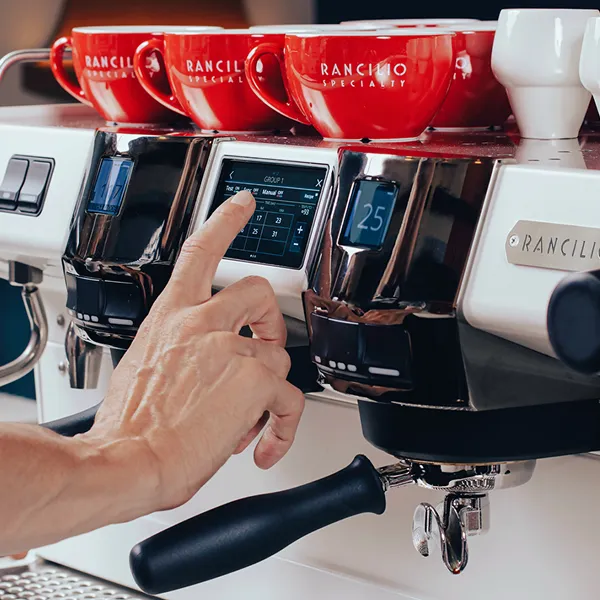

Quick and easy access to all machine settings. There are 2 types of interface – “easy” with only the main settings and “tech” for more experienced baristas – and 3 different menus dedicated to baristas, managers and technicians.

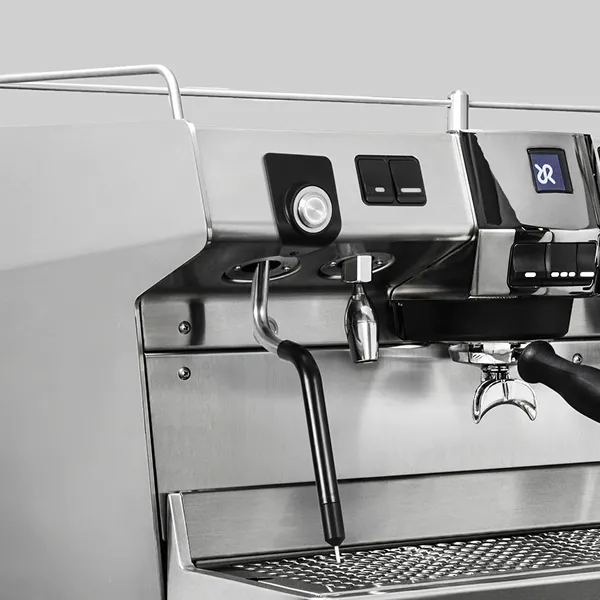

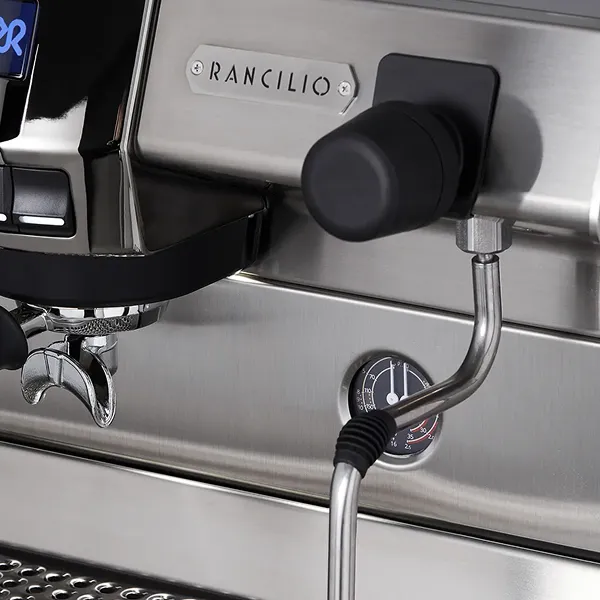

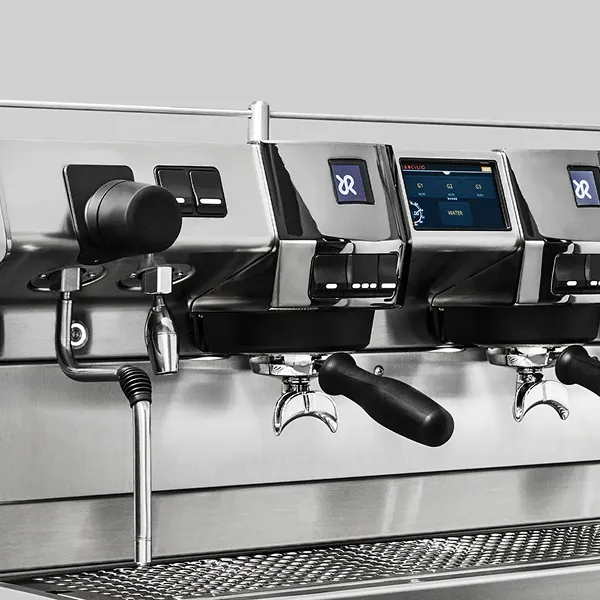

Invicta has been equipped with an innovative 2-position knob which can be turned to the right to open and close it automatically (“Purge” function).
iSteam Pro is the automatic steam wand for milk frothing, perfect for all types of milk, including plant-based. The touchscreen allows saving up to 10 different customized recipes and activating the wand with a tap. Easy to use and clean, iSteam Pro speeds up service while ensuring consistently high quality. It can be installed on the right, left, or both sides of the machine.
Thanks to the 4-position T-Switch, a different extraction temperature can be set for each group, even for single boiler coffee machines. With the boiler adjusted to 1.0 bar, a temperature of approx. 90°C, 93°C, 96°C or 99°C can be set on each group and the right extraction temperature for each type of coffee is always available. The T-Switch can only be adjusted by specialised technicians during installation by removing the cup warmer.
The barista can vary the water pressure both in the initial stage (pre-infusion) and in the final stage (post-infusion) of the extraction process, choosing between mains pressure or pump pressure, and also adjust the duration of all stages (pre-infusion, extraction, post-infusion).
By keeping the water temperature stable during extraction, Steady Brew guarantees excellent thermal stability, reliability and maximum repeatability, both during busy periods and in low usage conditions.
Width: 1057 mm / 41.61 inch
Height: 450 mm / 17.72 inch
Depth: 600 mm / 23.62 inch
Weight: 90 kg / 198.41 lb
Height of the drip tray: 80*-100-120 / 3*-4-5
Touchscreen: 4.3''
Digital display: Per group
Ergonomic portafilter

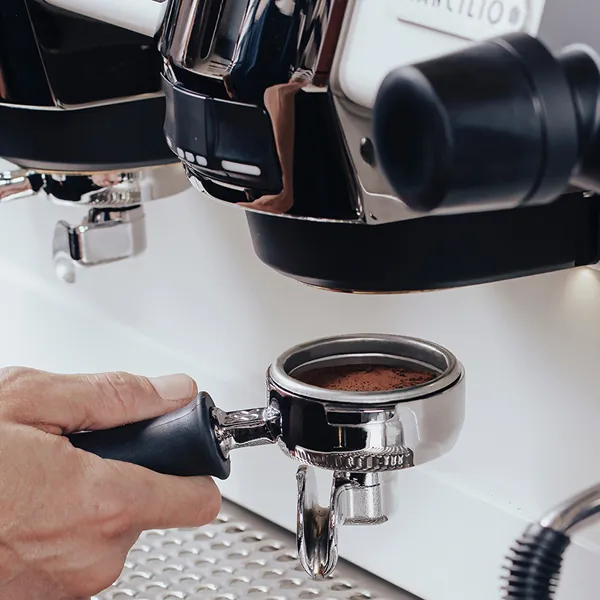

The chrome-plated brass portafilter, with an ergonomic handle designed to balance the weight, holds coffee filters up to a capacity of 21 g, ensures stability when pressing, and eases wrist movements for the barista. The portafilter handles may be personalized.
Steady Brew (SB)
Rancilio Steady Brew (SB) technology is the evolution of the traditional thermosiphon system and introduces a set of innovative features designed to improve the performance of all single-boiler espresso machines. By keeping the water temperature stable during extraction, Steady Brew guarantees excellent thermal stability, reliability and maximum repeatability, both during busy periods and in low usage conditions. Rancilio Patented Technology.
T-Switch
Thanks to the 4-position T-Switch knob, a different extraction temperature can be set for each group, even for single boiler coffee machines. With the boiler adjusted to 1.0 bar, a temperature of approx. 88°C, 93°C, 96°C or 98°C can be set on each group and the right extraction temperature for each type of coffee is always available. The T-Switch can only be adjusted by specialised technicians during installation by removing the cup warmer.
Brewing group: Brass
Smart Flush
By activating the Smart Flush function, the duration of the flush varies according to the time elapsed since the last coffee delivery. This function keeps the group at the right temperature and improves thermal stability.
X-Tea
Baristas can programme water dosages and temperature levels via the interface.
Rancilio Patented Technology
Cool touch steam wand
The cool touch steam wand is thermally insulated with a double-layered protective coating.
iSteam Pro
iSteam Pro is the steam wand designed for automatic milk frothing. It is built to work perfectly with all types of milk, including plant-based alternatives, effortlessly delivering the same high-quality results as a professional barista. The touchscreen allows precise adjustment of both temperature and froth level, saving up to 10 customized recipes, and activating the automatic wand with a simple tap. iSteam Pro is easy to use and simple to clean, also thanks to the pre-purge function, which eliminates condensation before frothing. Ideal for high-volume locations with heavy cappuccino and macchiato production, iSteam Pro is the perfect solution for speeding up service while ensuring consistently perfect froth for every beverage. Available as an optional feature, the iSteam Pro wand can be installed on the right side, left side, or both sides of the machine.
Steam knob: Yes
Power supply: 220 – 240 V~ / 380-415V3N~, 50–60 Hz 5400 W
Water supply: Fixed water connection
Main boiler capacity (steam): 16 l / 3.5 gal UK
Height-Adjustable Drip Tray
Ergonomic Portafilter
The chrome-plated brass portafilter, with an ergonomic handle designed to balance the weight, holds coffee filters up to a capacity of 21 g, ensures stability when pressing, and eases wrist movements for the barista. The portafilter handles may be personalized.
LED lights

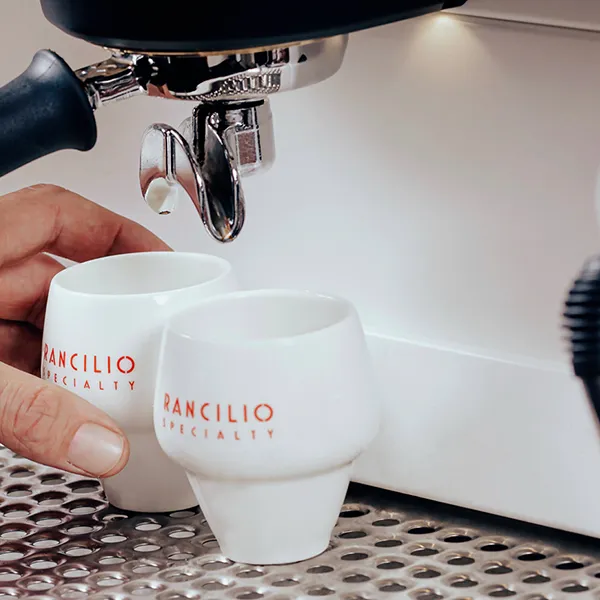

White LED lights positioned under the group heads provide excellent illumination for the work area.
ABM
ABM is a specific software developed to improve the performance of the machine in conditions of intensive use. When simultaneously brewing espresso, dispensing water and steaming milk, ABM switches on the heating element to pre-empt any drops in pressure under the preset value, thus preventing drops in temperature to ensure constant heating levels.
Control of the boiler pressure is optimised in the case of the intensive and simultaneous use of multiple group heads. In these cases, in order to prevent the pressure from dropping below a minimum value of 0.5 bar, ABM can stop water from being dispensed until the boiler pressure returns to a suitable level.
ABM also allows for control of the machine’s power consumption, reducing it to 2/3 of the normal value where power availability is low.
For espresso machines equipped with the iSteam wand, ABM also improves steam delivery performance by increasing the power of the heating element in the boiler, allowing it to produce more heat and reduce drops in pressure during milk frothing.
Rancilio Patented Technology
Auto ON-OFF
It is possible to set the automatic on and off times for the machine (Classe 11, Classe 20) or set the automatic on time and the power-on hours (Classe 9, Classe 7) for each day of the week.

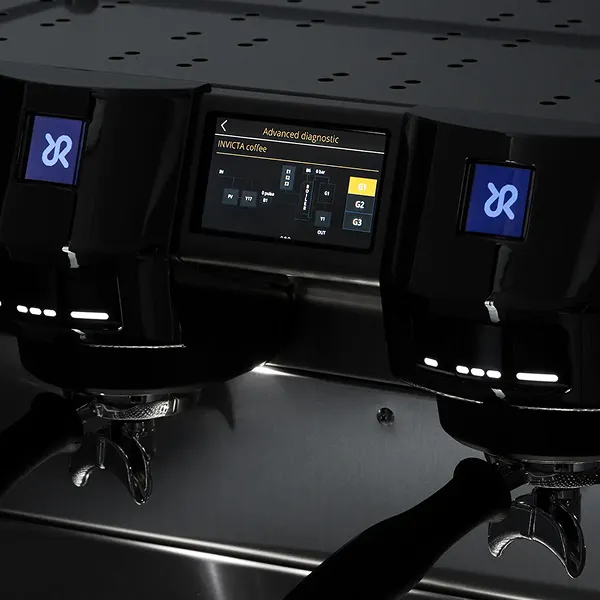

Advanced Diagnostics
Thanks to the Advanced Diagnostic system, technical intervention times are reduced to a minimum. The “Technical” menu includes a “Service” function allowing users to test all the machine’s systems, to simply tap on the interface to check all components are in good working order, and to pinpoint faults or technical problems without having to inspect internal elements.
Easy clean
The group cleaning and rinsing cycles are automatic and can be activated from the touchscreen. A daily alarm can be set to remind users to activate the cleaning cycle. It is also possible to set the optional machine block if cleaning does not take place and display the history of all actions performed.
Snap&Share
Snap&Share is a QR code reader app that allows users to share the technical settings of their espresso machine, keep track of maintenance operations, monitor consumption, and register new products to activate the warranty.
Connect
Connect is a powerful IoT solution developed by Rancilio Group, to gather and easy analyze all the value relevant data generated by a single coffee machine or an entire fleet. Via a customizable dashboard with widgets, tables and graphs, Connect gives you a ready to use digital toolkit, to monitor key performance parameters in real time and empower your whole coffee business.
Cup Warmer
The cup warmer keeps all espresso and cappuccino cups at the right temperature at all times.
Wood Kit
Wooden Handle Portafilter + Wooden Steam Lever Handle.
